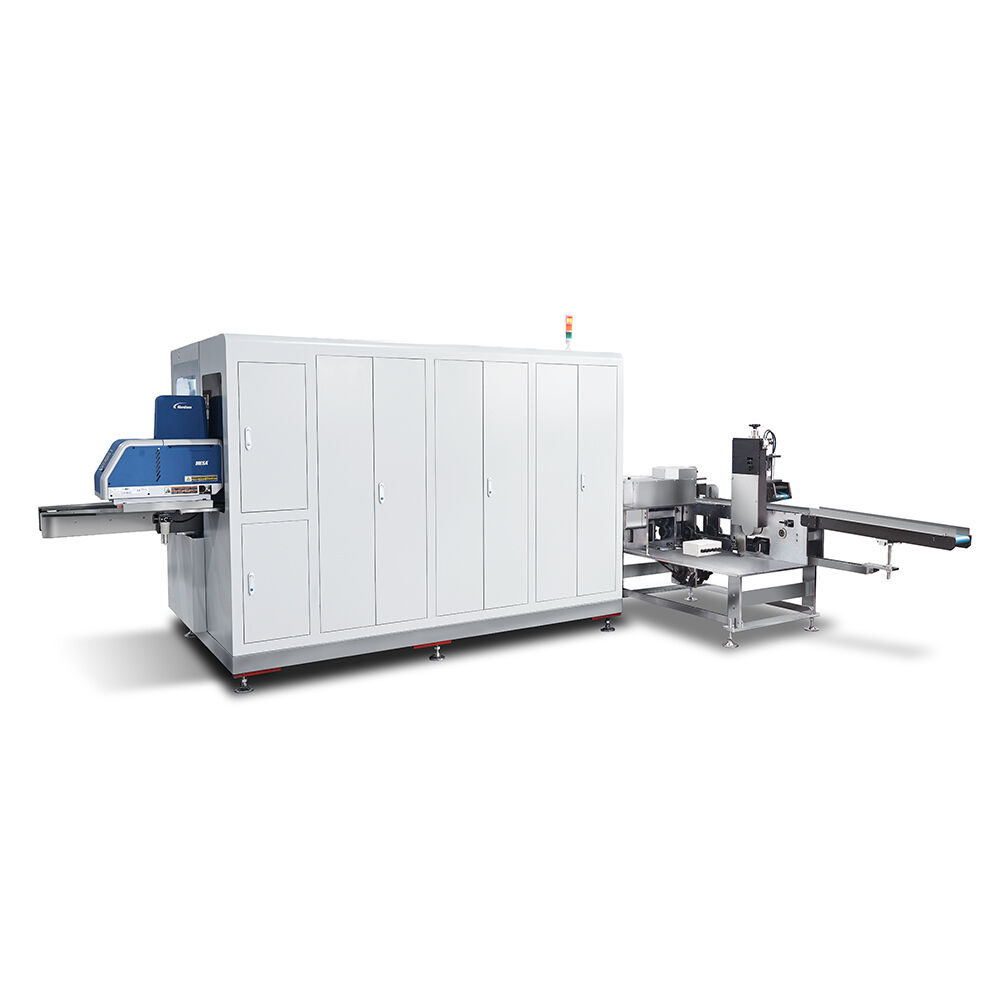

ST-200D High Speed Facial Tissue Carton Packing Machine

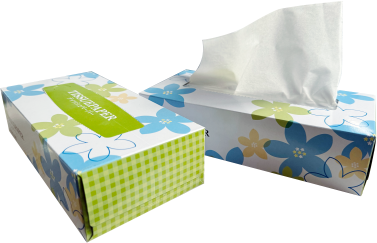

It is suitable for automatic boxing of facial tissues,square tissues, pocket tissues, cotton tissues etc.
- Overview
- Recommended Products
Five innovations of the machine:
1、High output. The stable speed can reach 130 boxes/minute.
2、Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3、Rapid production. it only takes 10-20 minutes to change the specifications.
4、Convenient operation. lt is easy to control the servo paper feeding and PLC control system.
5、Low cost. The imported glue machine with a nozzle of 0.3-0.36mmis adopted and the glue-spread is little.
Machine Performance and Parameters
| Item/model | ST-200D | |
| Paper quality of carton | 300-400g/m3 | |
| Maximum packing specification | L(100-240)mm×W(100-120)mm×H(40-90)mm | |
| Packing speed | 60-200 boxes/minute | |
| Hot melt machine power | 4KW | |
| Total power | 11 KW | |
| Power supply type | 3phase 4wire 380V 50HZ/60HZ | |
| Machine noise | ≤80dB | |
| Air supply | 0.5-0.8 Mpa | |
| Air consumption | 60-100L/min | |
| Overall dimensions | Main Machine | L4628×W1520×H1916mm |
| Conveyor system | L2385×W1286×H1640mm | |
| Machine weight | 4200Kg | |
Packing Style and Specification

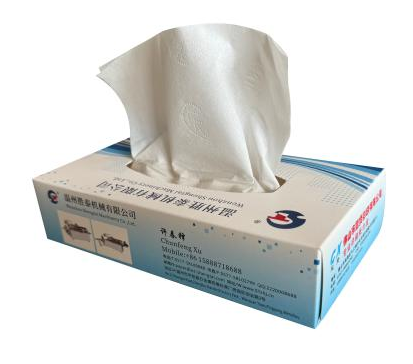

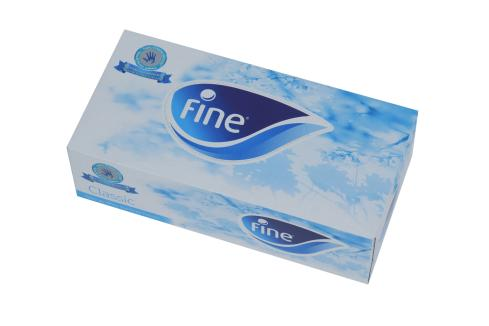

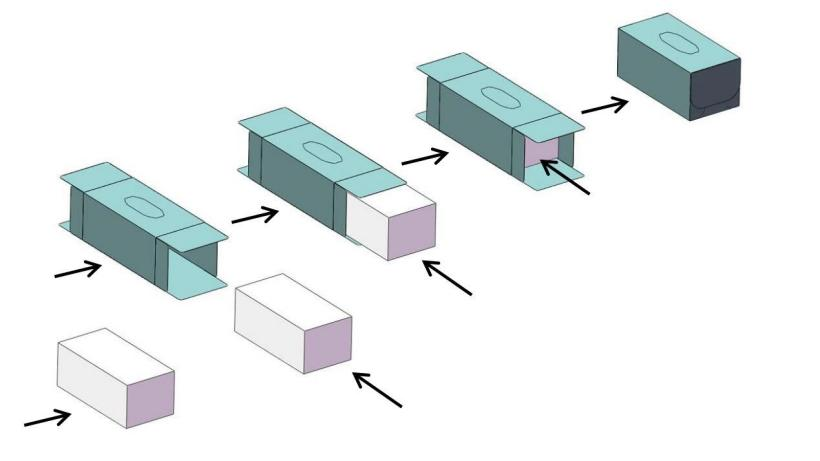

| Flow Chart | Real Example | ||
 |
 |
 |
 |
Main Features and Advantages
1、ST-200D uses motion control system .
2、Max capacity of up to 200 boxes per minute.
3、 High standard security performance.
4、Compact and reasonable structure,simple operation and adjustment.
5、Adopting photoelectric eye automatic detection tracking system.
6、Stop automatically if no cartons or out of leaflets continuous.
7、Easy to change to different sizes.
8、Protecting automatically for overloading.
9、 Using the famous America glue machine.
Equipment Details
 |
 |
 |

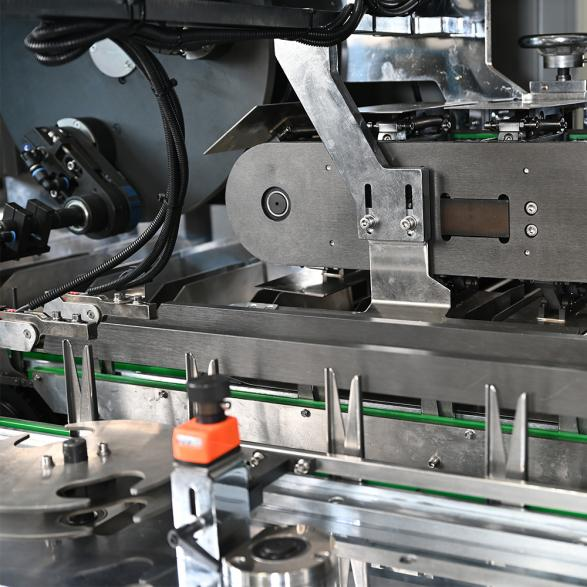

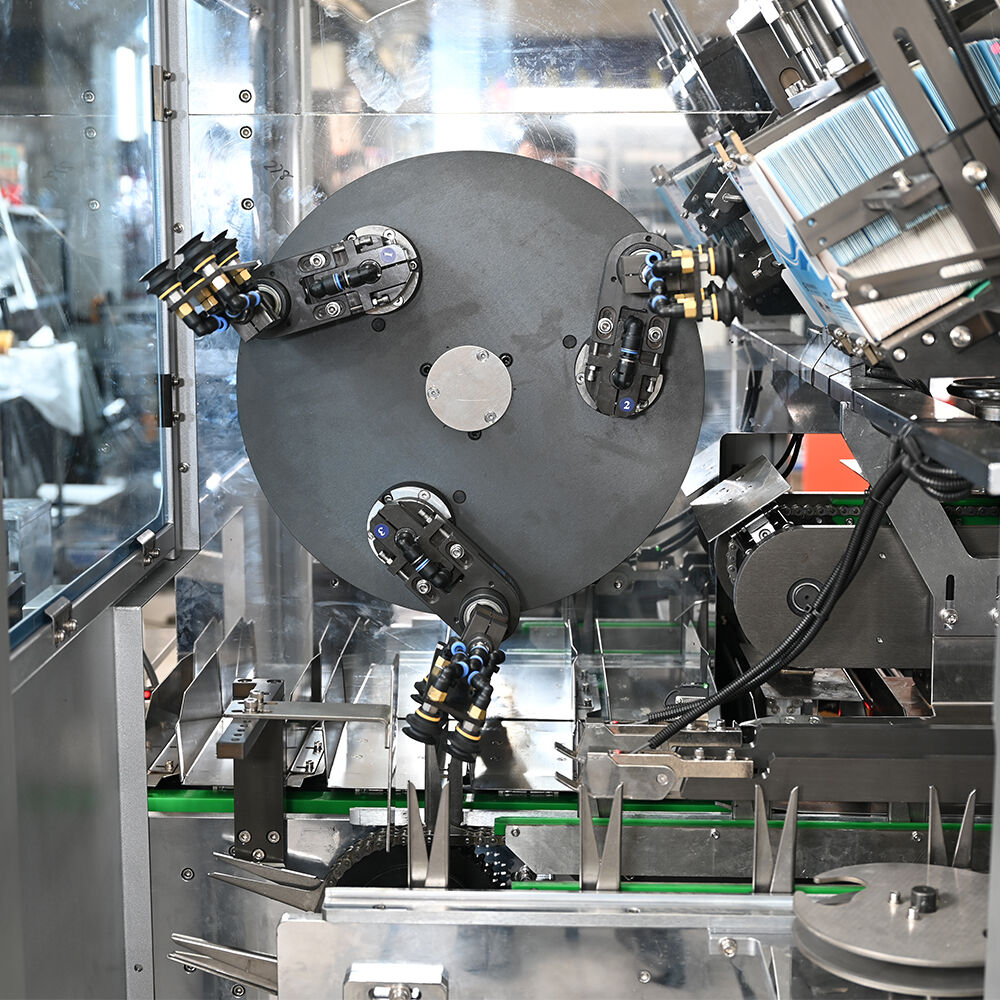

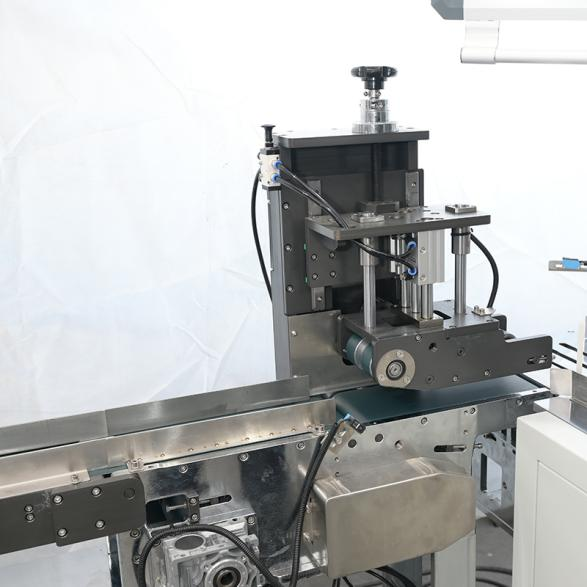

| Automatic material feeding conveyor-With material measurement photoelectricity, there are materials will be opened and boxed to ensure that 100% no empty packages | Rotating suction cups-Carton drop rate of up to 130 cartons/minute at a steady rate | Servo Pusher with Side Lug Opening-Automatically push the material into the box, The material into the box is not in place will be alarmed to deal with |
 |
 |

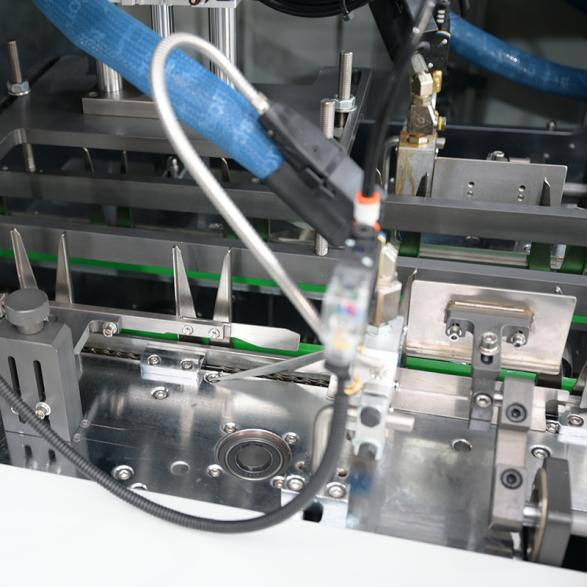

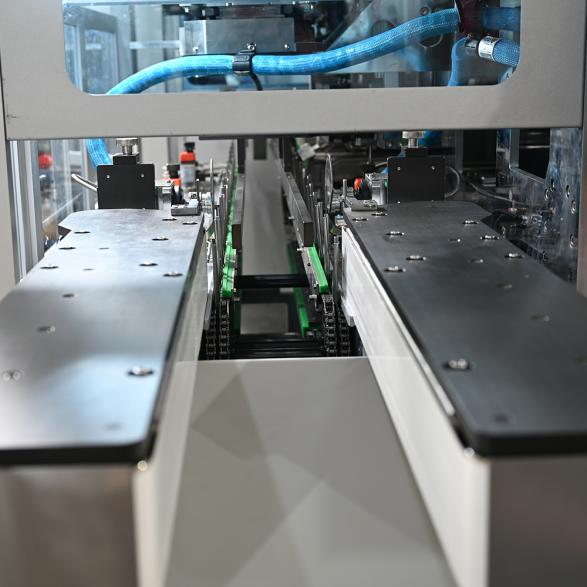

| Glue spraying mechanism-Automatic spray glue sealing box, can also be box buckling bottom, tongue insertion device. | Finished product output-Failed products are detected by photoelectricity and can be rejected here to guarantee 99.9% pass rate. |
