Custom Project Background

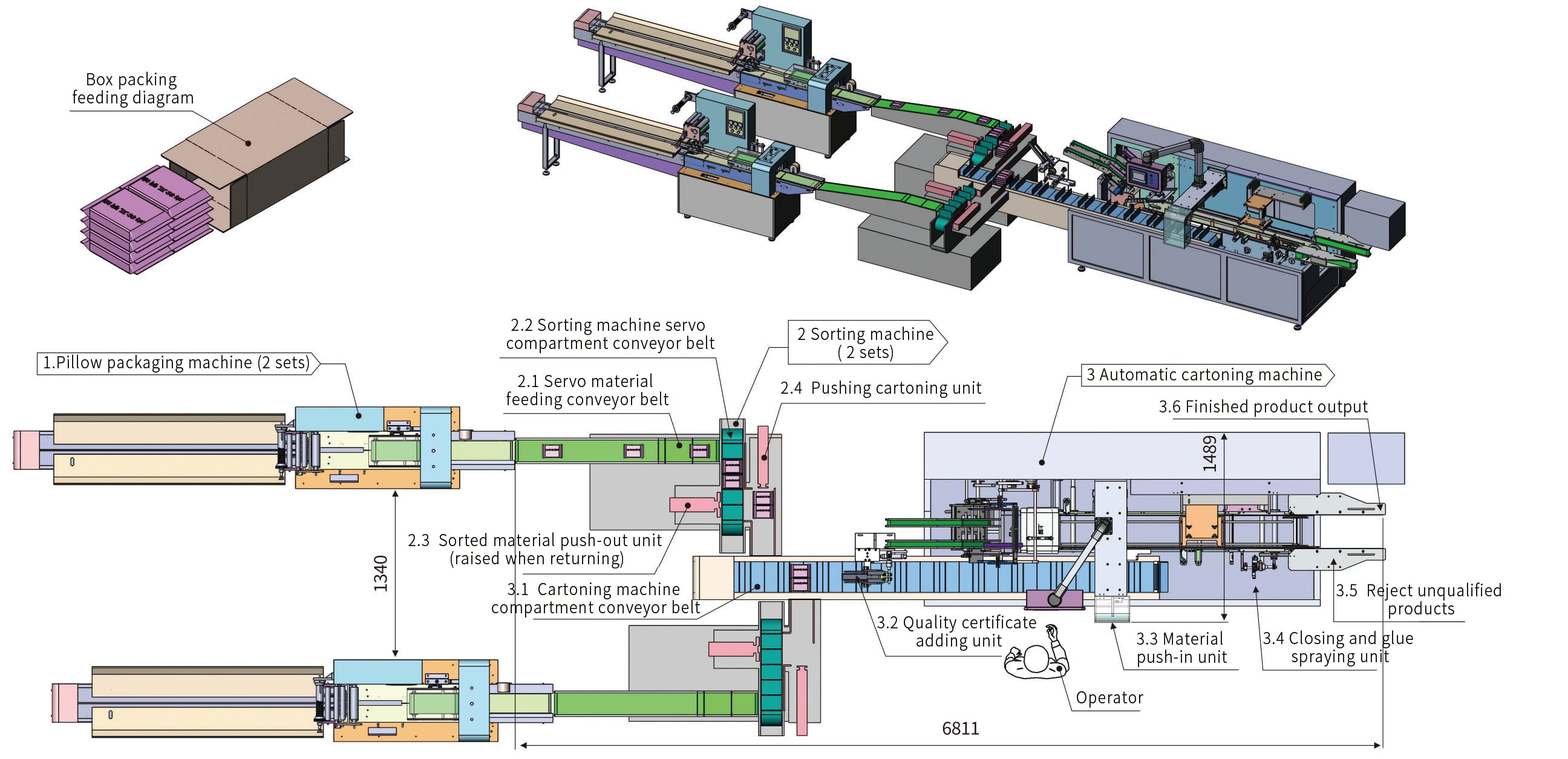

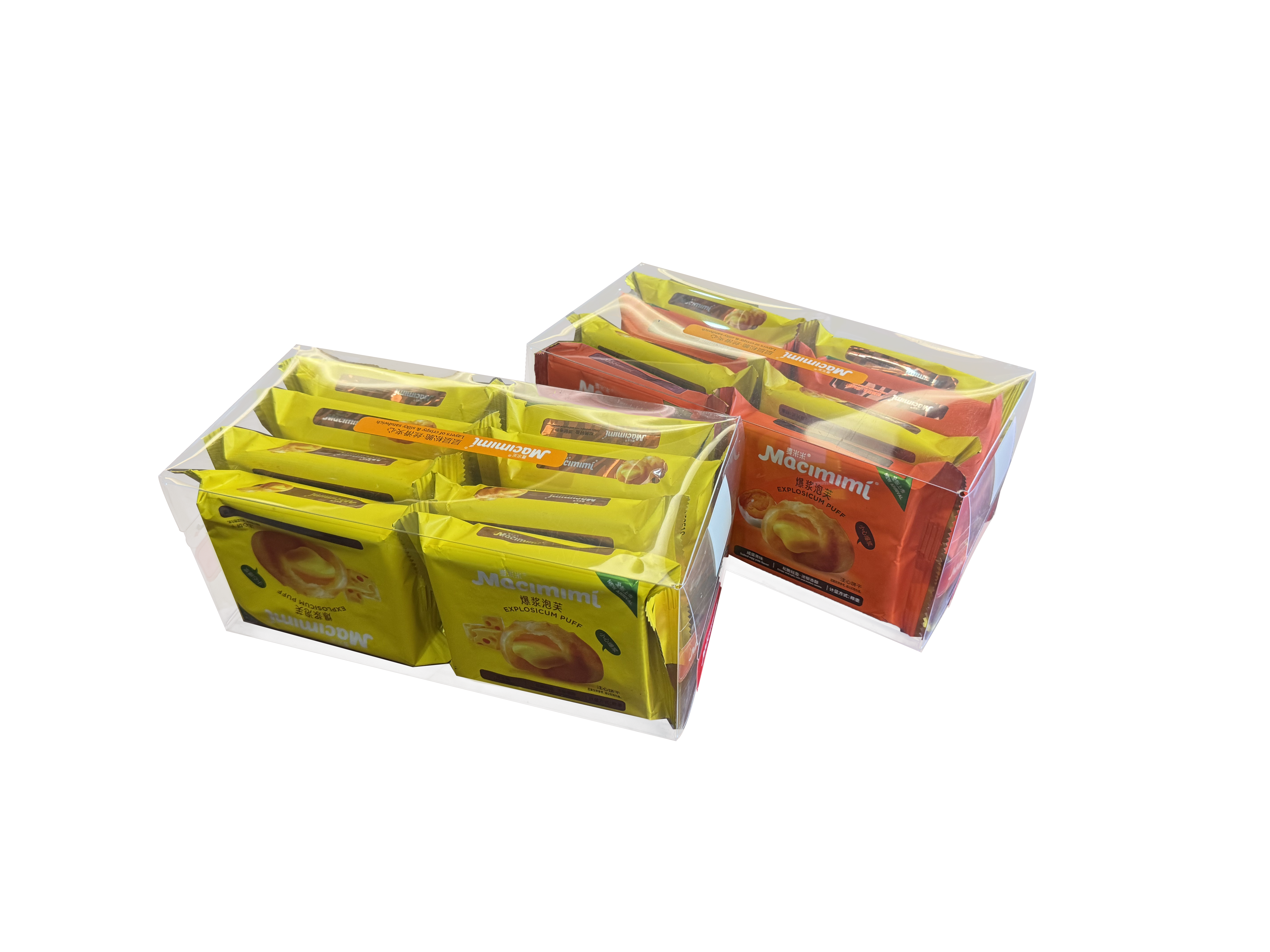

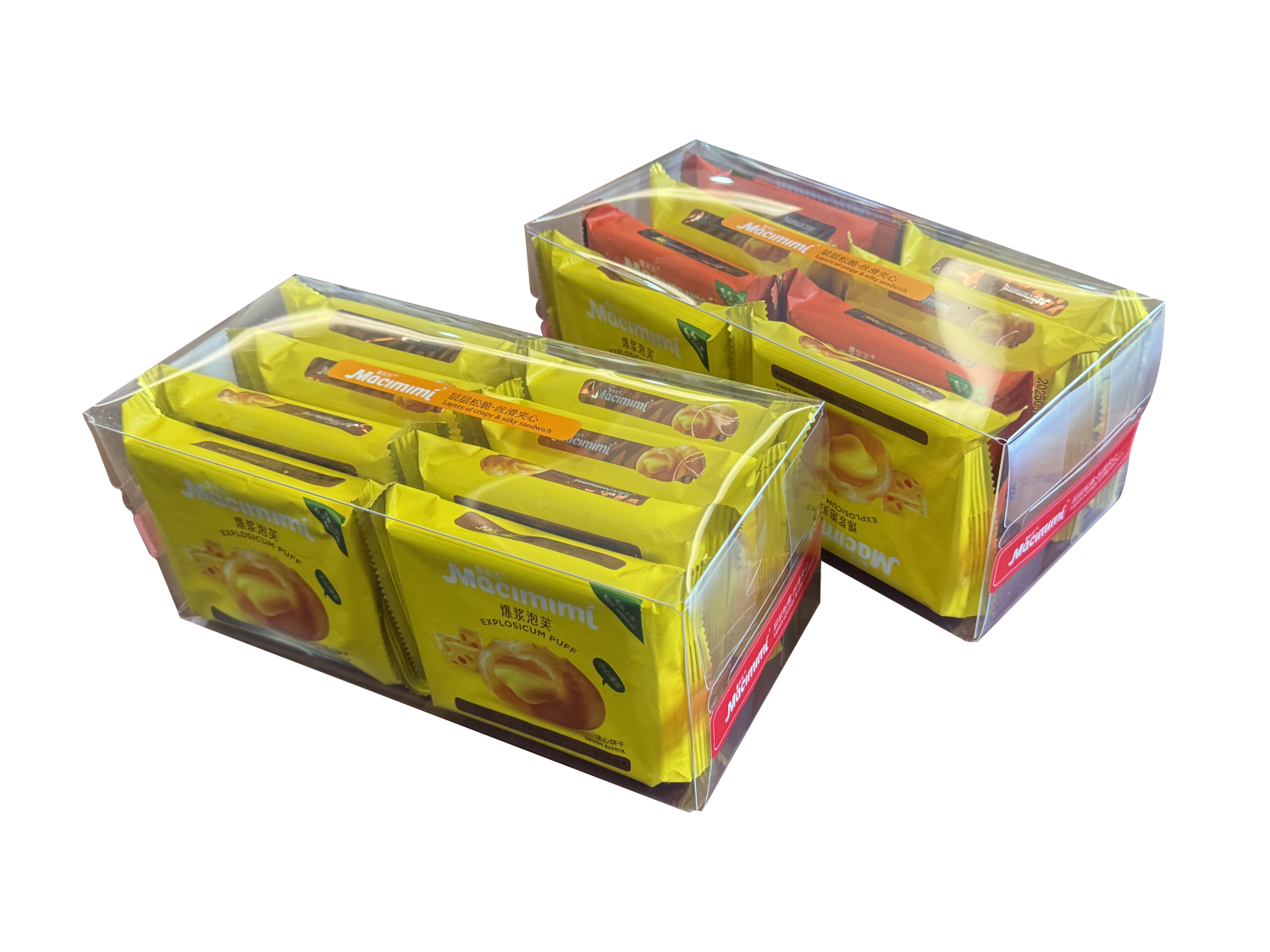

This entire automated packaging line is tailor-made for snack food clients, designed for post-packaging sealing of individually pillow-packed biscuits. Per customer technical requirements: 8 individually pillow-wrapped biscuit pouches are neatly loaded into one paper carton. Two pillow packaging machines are arranged at the front end to discharge materials synchronously, connected to the main automatic cartoner at the rear. The line integrates material collection, sorting & grouping, certificate insertion, product pushing into cartons, glue spraying & carton sealing, defective product rejection and finished goods discharging in one continuous workflow, perfectly catering to large-scale continuous production demands of baked snack foods.
Core Advantages of Custom Production Line
- Dual-machine Parallel Feeding, Stable & Sufficient Output With synchronous discharging from two pillow packaging machines paired with dual-channel material sorting structure, the cartoner runs steadily at a speed of 30~40 cartons per minute. The production capacity of front and rear sections is perfectly matched without material jamming or material shortage downtime.
- Precise Servo Grouping, Neat Material Arrangement Equipped with a full servo conveying and sorting system, the 8 pouches are stacked and grouped in layers tidily. It avoids squeezing and deformation of packaged food to maximally preserve the intact shape of biscuits.
- Integrated End-to-End Sealing with Complete Functions Multiple functions including automatic certificate inserting, glue spraying sealing and defective product rejection are integrated on one single line to finish all post-packaging procedures with smooth procedure connection.
- Intelligent Optical Fiber Detection + Defect Rejection, High Packaging Yield Multiple safeguards are adopted: idle running protection when materials run out, empty carton inspection and automatic rejection of non-conforming products, which greatly reduces packaging error rates and ensures consistent finished product quality.
- Remarkable Labor Cost Savings Only one patrol operator is required for the whole line, completely replacing the traditional manual work of counting pouches, placing goods and carton filling, cutting long-term labor expenses significantly.
- Wide Compatibility for Baked Snack Production Besides biscuits, the line is also applicable to cartoning of packed bread, pastries, filled snacks and other food products. No large-scale equipment renovation is needed when clients switch production items later.
Production Benefits for Clients
- Greatly Improved Production Capacity: Continuous assembly line production easily fulfills mass order delivery requirements for food factories.
- Standardized Packaging Quality: Automatic unified carton sealing delivers tidy carton appearance for better shelf display effect in supermarkets.
- Sharply Reduced Material Loss Rate: Flexible servo conveying prevents packaged food from being crushed or damaged, cutting raw material wastage.
- Optimized Operating Costs: Less manpower demand, low equipment failure rate and easy daily maintenance help continuously lower overall production costs.
- Hygienic & Compliant Production: The enclosed automated line complies with food hygiene regulations, meeting packaging standards for domestic supermarket sales and overseas export.
Project Summary
This fully automatic cartoning line for 8-pack food linked with two pillow packing machines is a customized post-packaging solution specially developed for biscuit and baked food manufacturers. Featuring dual-channel feeding with servo sorting and integrated cartoning & sealing design, it runs smoothly with moderate capacity and comprehensive functions. It serves as an optimal complete equipment solution for snack food manufacturers to realize packaging automation upgrade, cut costs and boost production efficiency.
