Custom 12-Bottle Milk Palletizing & Cartoning Solution (STZ-300 Cartoner)

Overview

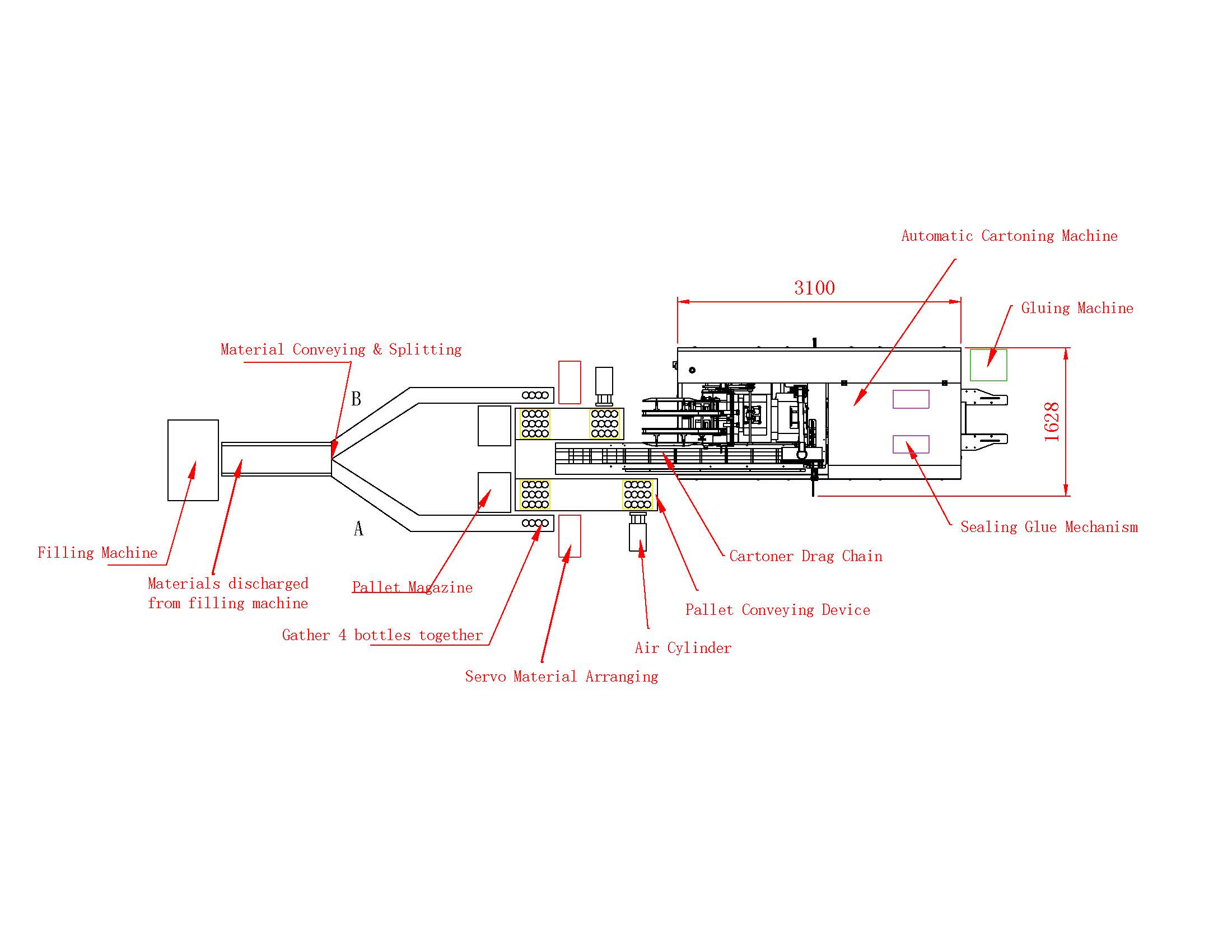

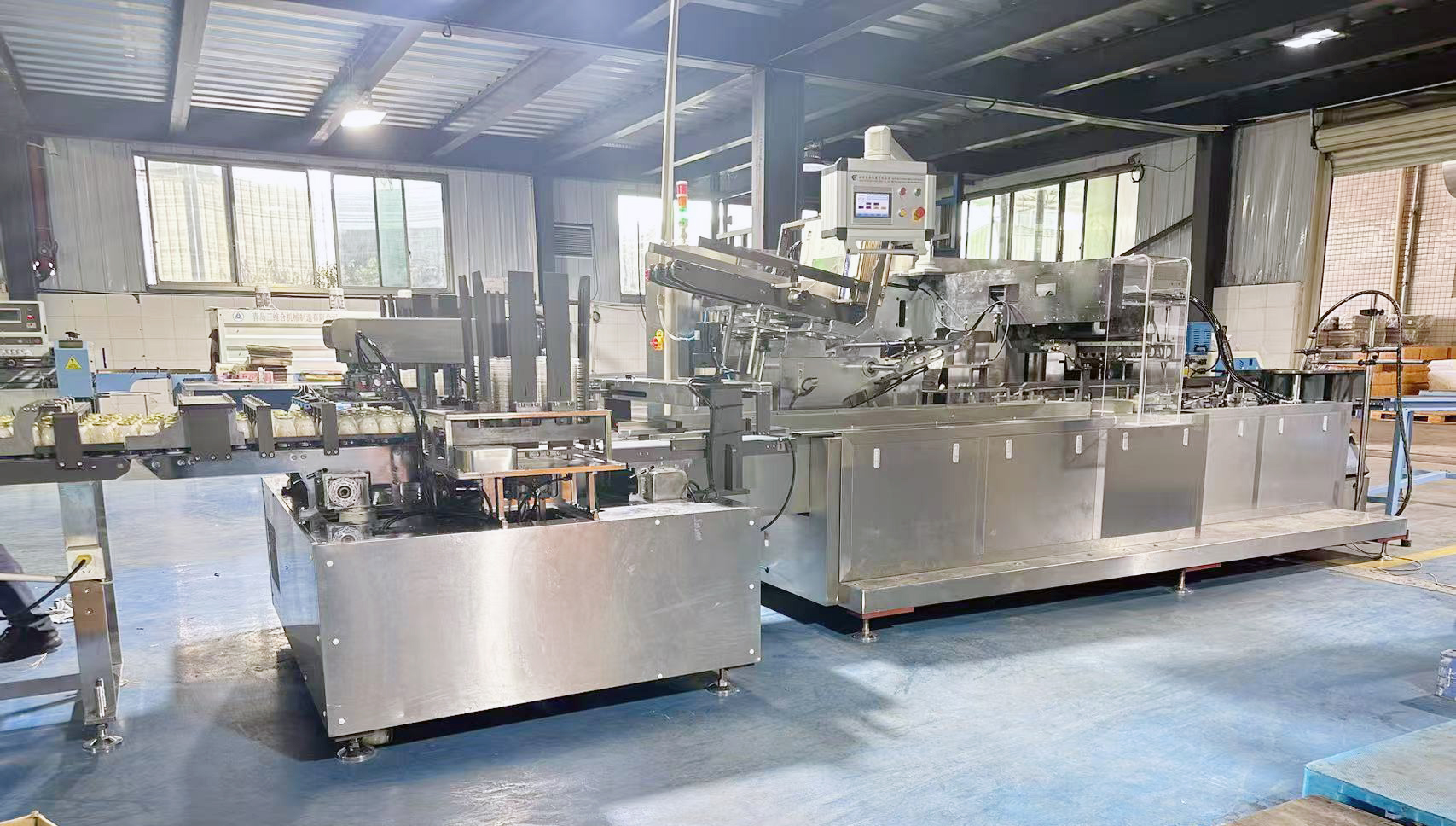

This fully automatic packaging line is custom-designed for dairy customers, adopting the STZ-300 integrated cartoner to realize 12-bottle milk pallet loading and carton sealing. It can directly connect to filling machines, with compact overall dimensions (L3100mm × H1628mm), integrating split conveying, pallet feeding, servo arranging, cylinder pushing and glue sealing modules to save workshop space.

Working Process

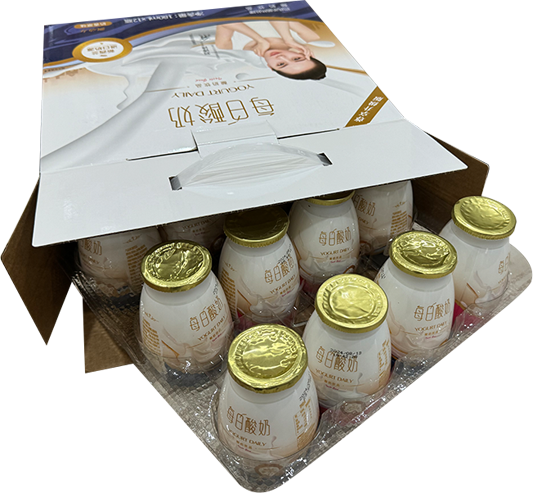

1.Milk bottles are split into Channel A & B, with 4 bottles grouped in each channel to form a 12-bottle set.

2.Empty pallets are automatically discharged from the magazine, and servo units place bottle groups onto pallets without scratching.

3.Air cylinders push loaded pallets into the cartoner drag chain for continuous cartoning.

4.Automatic glue spraying and carton sealing are completed, and finished goods are output automatically.

Key Advantages

• Custom dual-channel layout, stable 12-bottle matching, suitable for milk and yogurt bottles.
• Servo & cylinder flexible conveying supports 24-hour non-stop production with low jamming rate.
• Integrated compact structure cuts floor space by 40%, compatible with old factory renovation.
• Precise gluing ensures uniform sealing quality, meeting supermarket delivery standards.
• Highly automated, labor cost reduced by 80% and output increased by over 65%, only one inspector required.

Customer Value

• Stable daily capacity for 100,000+ dairy bottles;
• Packaging defect rate controlled under 0.3%;
• Low maintenance and long-term cost savings;
• Clean traceable production complying with food industry standards.

Summary

Customized for dairy post-filling packaging, the STZ-300 cartoner integrates all packaging procedures. It is an ideal automated upgrade solution for small & medium dairy plants to lower costs, improve quality and raise efficiency.
