Product Description
Model STZ-80 Automatic Vertical Cartoning Machine is a vertical drop-type carton packaging equipment. It automatically completes the whole processes including carton picking & opening, leaflet inserting, product filling and carton sealing.
Equipped with precise servo drive systems and intelligent error-detection functions, the machine features small floor space and easy commissioning. It is suitable for various vertically placed products such as bottles, sachets, soft tubes and blister packs, and widely applied to automatic packaging production lines in pharmaceutical, daily chemical and food industries.
Machine Performance and Parameters
| Item/model | STZ-80 |
| Paper quality of carton | 300-400g/m3 |
| Maximum packing specification | L40-80mm×W40-80 mm×H 75-240 mm |
| Packing speed | 20-100 packs/min (it depends on the inner liner) |
| Hot melt machine power | 4KW |
| Total power | 11 KW |
| Power supply type | 3phase 4wire 380V 50HZ/60HZ |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 60-100L/min |
| Main Machine | L3515×W2494×H1767mm |
| Machine weight | 2000Kg |

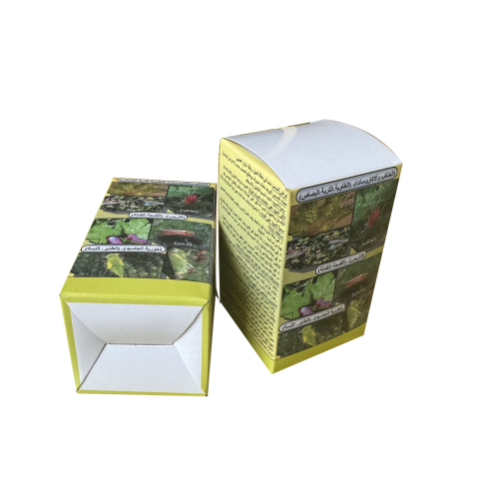

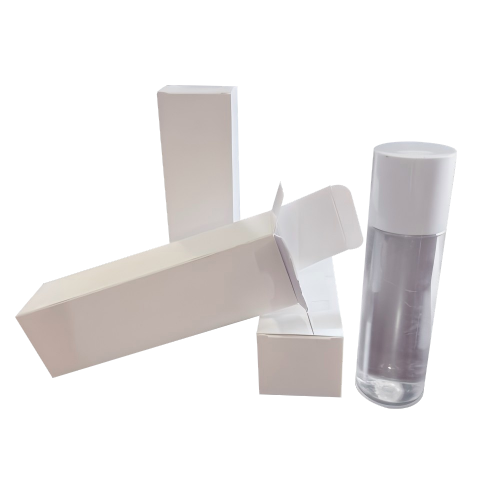

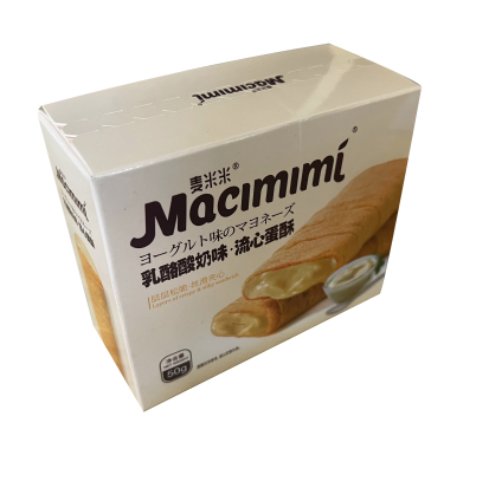

Real Example
 |
 |
 |
Main Features and Advantages
2.1. Adopts PLC and HMI automatic control operating system with stepless variable frequency speed regulation, featuring high automation. The display screen is integrated with intelligent modules for simple and intuitive operation.
2.2. The machine adopts well‑known domestic/imported brand pneumatic components and standard actuators, ensuring stable and reliable performance.
2.3. Safety measures: The main machine is equipped with an automatic stop and alarm function for mechanical overload to ensure operator safety.
2.4. Automatically rejects finished products lacking packaging materials or instructions to guarantee packaging quality.
2.5. Equipped with fault display, alarm, and product counting functions for convenient maintenance and troubleshooting.
2.6. Strict quality control is implemented for the materials and processing of all machine parts.
2.7. A hot‑melt machine or hot‑melt adhesive sealing device is available as an optional accessory.
2.8. Various automatic feeders and conveying mechanisms can be customized according to customer requirements.

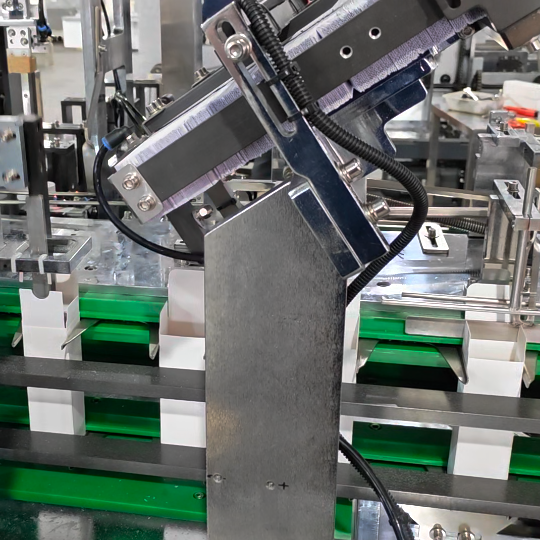

Equipment Details
 |
 |

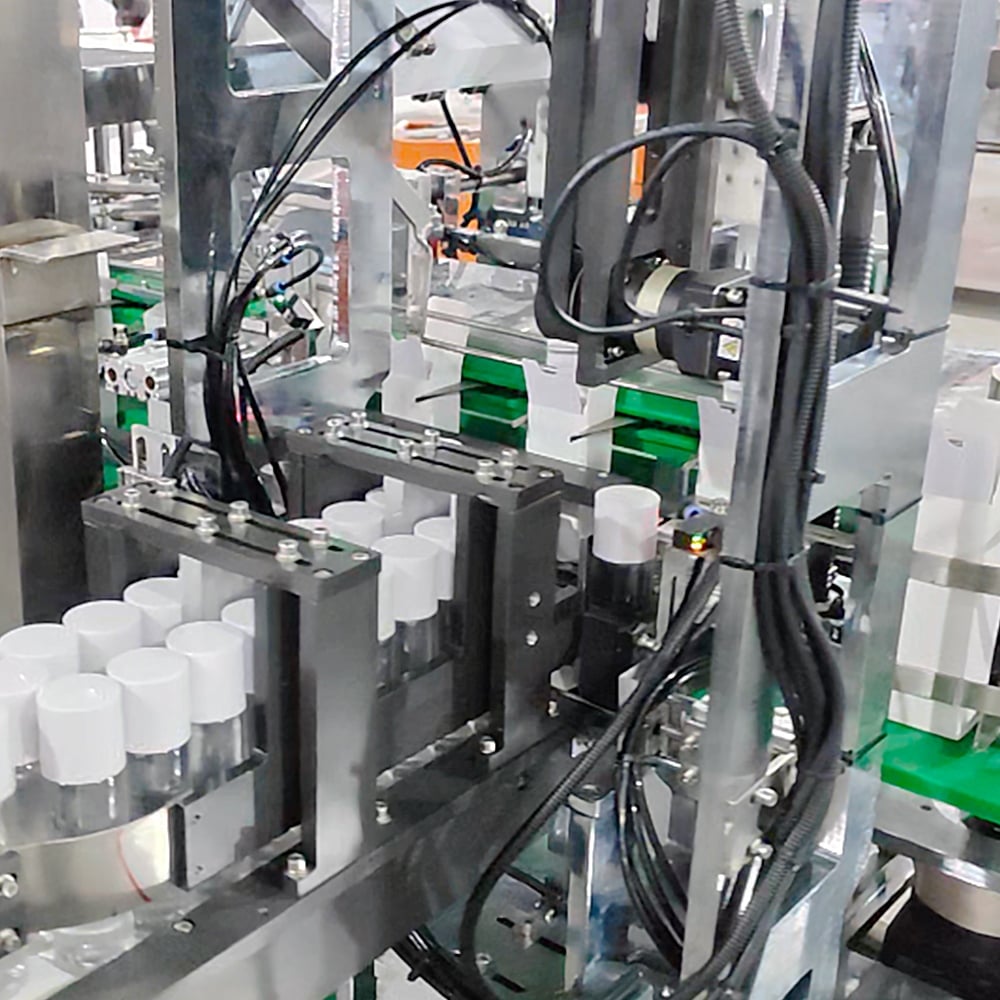

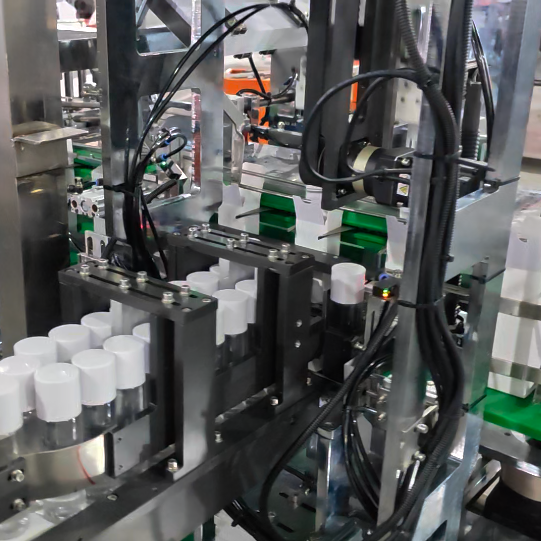

| Automatic material feeding conveyor-With material measurement photoelectricity, there are materials will be opened and boxed to ensure that 100% no empty packages | Place inner liner – Automatically fold and feed inner liner into carton. |
 |
 |

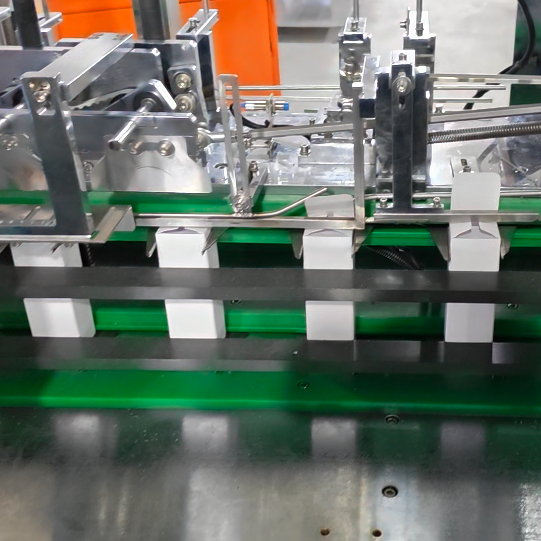

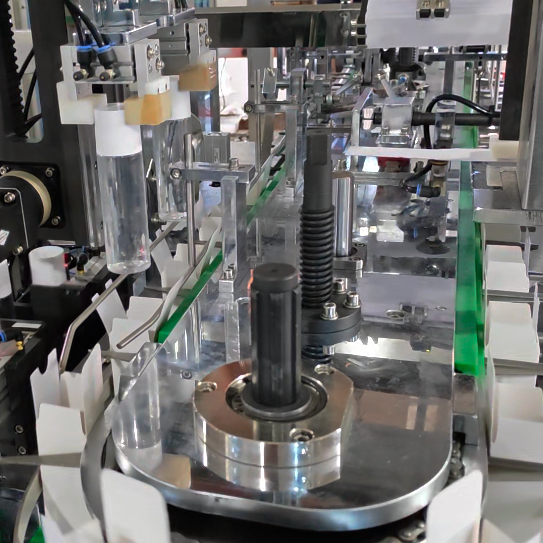

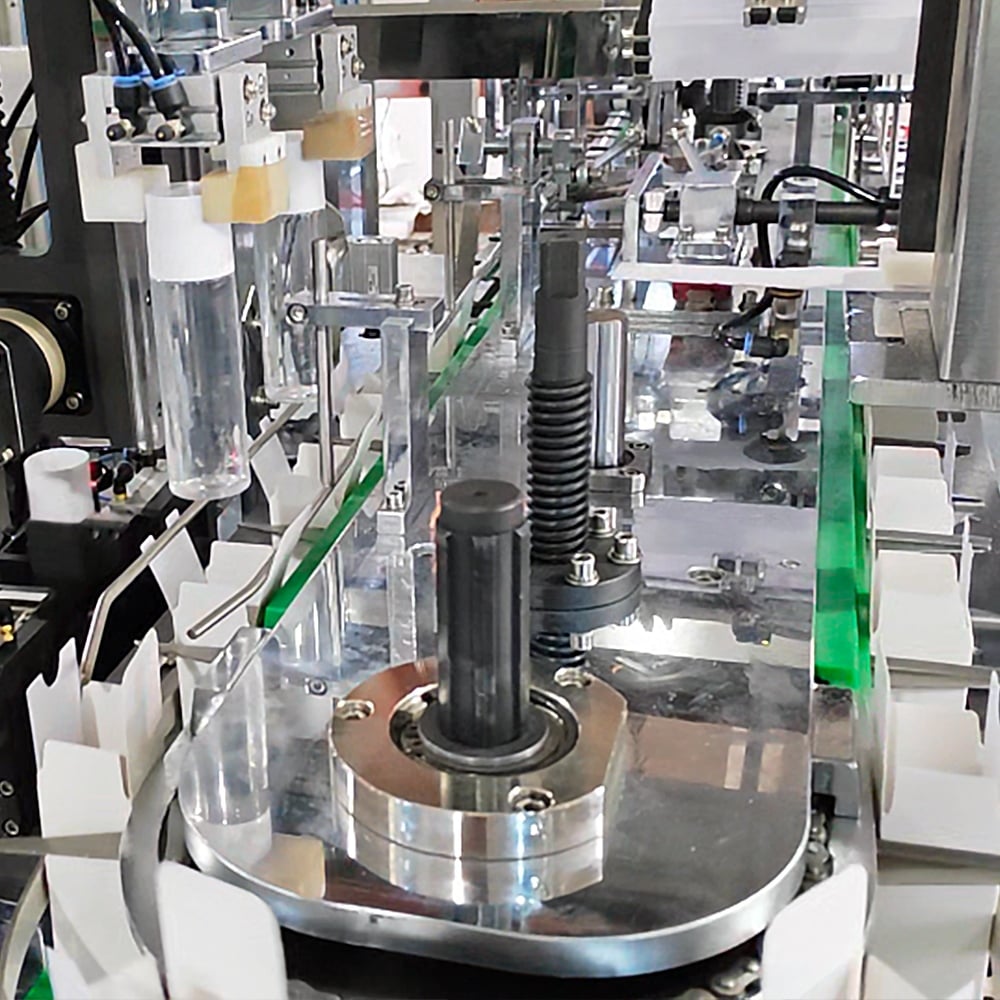

| Product Loading – Products are automatically fed into cartons; an alarm will be triggered if products fail to be properly seated inside cartons. | Carton Sealing Mechanism – Automatic tuck-in carton closing. |
