ST-100 Tissue Paper Cartoning Machine
Servo push paper hundred box cartoning machine,
Suitable for all kinds of tissue paper cartoning,
Change type fast save labor,
Safe and stable cost reduction.
- Overview
- Recommended Products
- High output. The stable speed can reach 100 boxes/minute.Complete functions.
- The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
- Rapid production. lt only takes 10-20 minutes to change the specifications.
- Convenient operation. lt is easy to control the servo paper feeding and PLC control system.
- Low cost. The imported glue machine with a nozzle of 0.3-0.36mm5，is adopted and the glue-spread is little.
Product Description
It is suitable for automatic boxing of facial tissues square tissues, pocket tissues, cotton tissues etc.
Four innovations of the machine:
Machine Performance and Parameters
| Item/model | ST-100 |
| Paper quality of carton | 300-400g/m3 |
| Maximum packing specification | L(100-240)mm×W(100-120)mm×H(20-90)mm |
| Packing speed | 30-100 boxes/minute |
| Hot melt machine power | 4KW |
| Motor power | 2.7KW |
| Total power | 6.7KW |
| Power supply type | 3phase 4wire 380V 50Hz |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Machine Size | L3619mm×W1406mm×H1800mm |
| Machine weight | 2100KG |
Packing Style and Specification

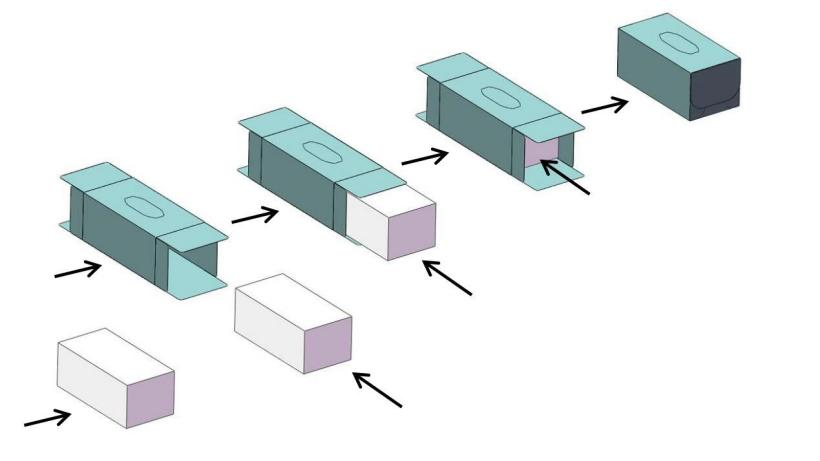

1、Flow Chart
2、Real Example
 |
 |
 |
Main Features and Advantages
1、Servo motor,touch screen,PLC control system and HMI is adopted to insure the convenience of operation .
2、Max stable capacity of up to 90 boxes per minute.
3、Compact and reasonable structure,simple operation and adjustment.
4、Adopting photoelectric eye automatic detection tracking system.
5、 Stop automatically if no cartons or out of leaflets continuous.
6、Easy to change to different sizes.
7、 Protecting automatically for overloading.
8、Using the famous America glue machine .
Equipment Details
 |
 |
 |
| Carton storage bin-With detection photoelectricity, automatic forward lower carton, less carton alarm | Upper and lower suction box-Automatically opens the box and waits for the material to enter | Servo Pusher with Side Lug Opening-Automatically push the material into the box, The material into the box is not in place will be alarmed to deal with |
 |
 |
 |
| Glue spraying mechanism-Automatic spray glue sealing box, can also be box buckling bottom, tongue insertion device. | Hot melt adhesive machine-Optional domestic glue machine and Nordson glue machine | Finished product output-Failed products are detected by photoelectricity and can be rejected here to guarantee 99.9% pass rate. |
