ST-100F Automatic Facial Tissue Cube Box Packaging Machine

Product Description

It is suitable for automatic boxing of facial tissues, square tissues, cotton tissues etc.

Four innovations of the machine:

• High output. The stable speed can reach 80 boxes/minute.
• Rapid production. lt only takes 10-20 minutes to change the specifications
• Convenient operation. lt is easy to control the servo paper feeding and PLC control system.
• Low cost. The imported glue machine with a nozzle of 0.3-0.36mmis adopted and the glue-spread is little.

Machine Performance and Parameters

Packing Style and Specification

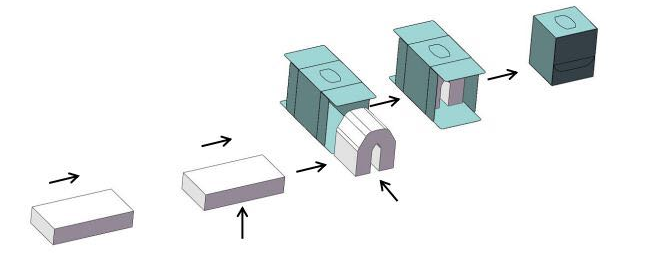

1、Flow Chart

2、Real Example

Main Features and Advantages

1、Servo motor,touch screen,PLC control system and HMI is adopted to insure the convenience of operation .

2、Max stable capacity of up to 70 boxes per minute.

3、Features a compact, robust design for straightforward operation and easy adjustment.

4、Equipped with an automatic photoelectric detection and tracking system.

5、Halts automatically during out-of-carton or leaflet misfeed events.

6、Allows for quick and easy size changeovers.

7、Includes integrated overload protection.

8、Utilizes a high-performance American-made gluing unit.

Equipment Details

Automatic material feeding conveyor-With material measurement photoelectricity, there are materials will be opened and boxed to ensure that 100% no empty packages	Carton storage bin-With detection photoelectricity, automatic forward lower carton, less carton alarm	Servo Pusher n-Feeder-Automatically push the material into the box, The material into the box is not in place will be alarmed to deal with

Glue spraying mechanism-Automatic spray glue sealing box, can also be box buckling bottom, tongue insertion device.	Finished product output-Failed products are detected by photoelectricity and can be rejected here to guarantee 99.9% pass rate.
