ST- Automatic Napkin Folding Machine

Suitable for automatic folding and output of napkins,Stable speed can fold 1200 pieces/minute.

  • Overview
  • Recommended Products

Machine Performance and Parameters

Model ST-Automatic Napkin folding machine
Napkin paper specifications 190-230mm
Packing speed 1200 piece/minute
Total power 3.5KW
Power supply type 380V 50HZ/60HZ (3 phase 5 wire)
machine noise ≦80dB
air supply 0.5-0.8Mpa
air consumption 120-160L/min
Outline dimensions 4445mmX910mmX1650mm
Machine weight 1200KG


Real Example

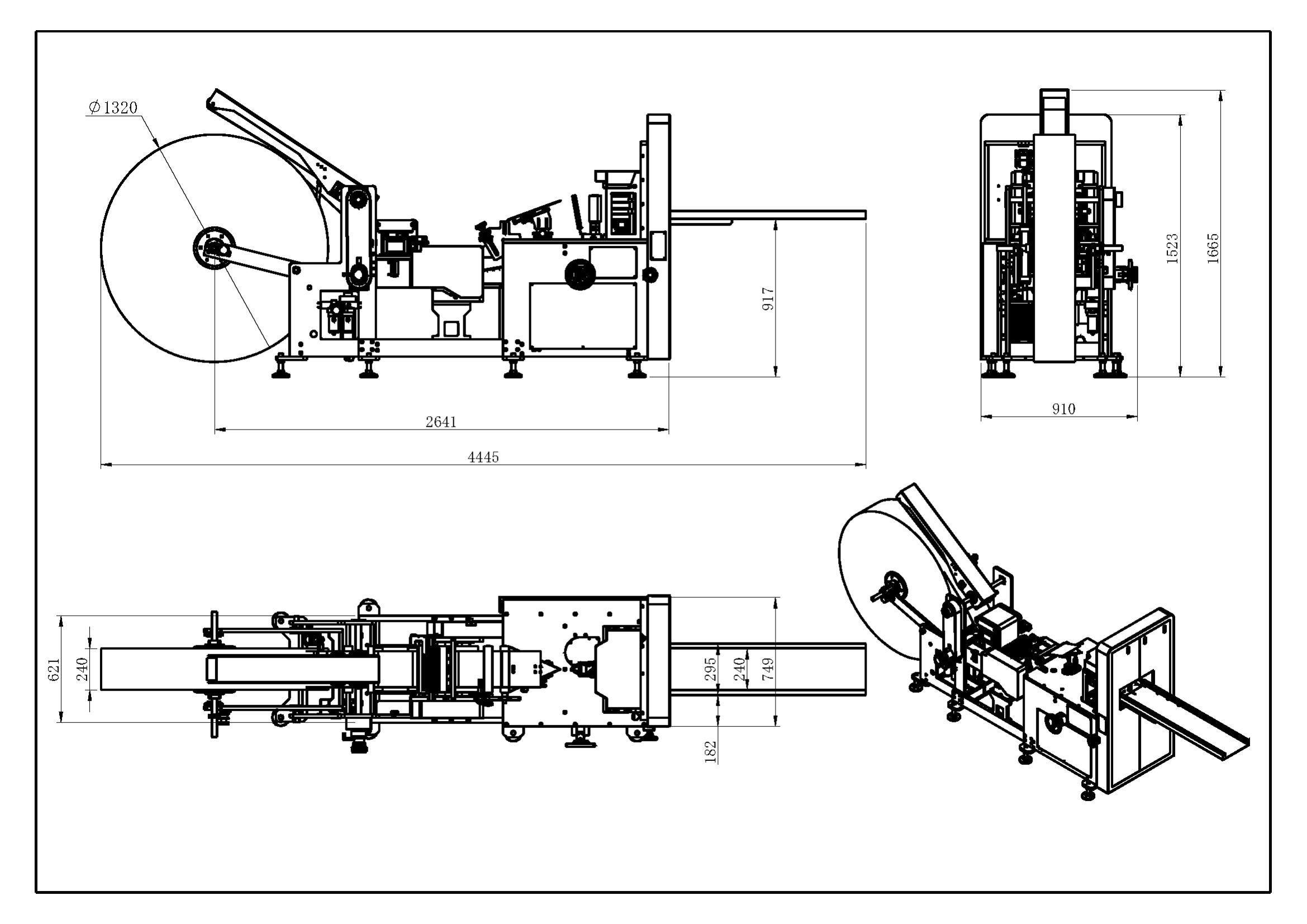

Equipment Dimensions drawing

图片4 (2).jpg

Main Features and Advantages
1.The machine adopts the component split design, changing the specification does not need to change the whole machine, only need to change the individual components and adjustments to realize the customer's various needs for the size of the napkin;
2、Compared with the traditional folding machine, the size of the machine body is reduced, saving the space of the site, and no longer subject to the factors of site limitations;
3、This machine adopts counter and programmable control system, which makes the man-machine interface display operation clear and simple, high degree of automation and more humanized;
4、Simple operation and adjustment, compact and reasonable structure, more easy to operate;


Equipment DetailsEquipment Details

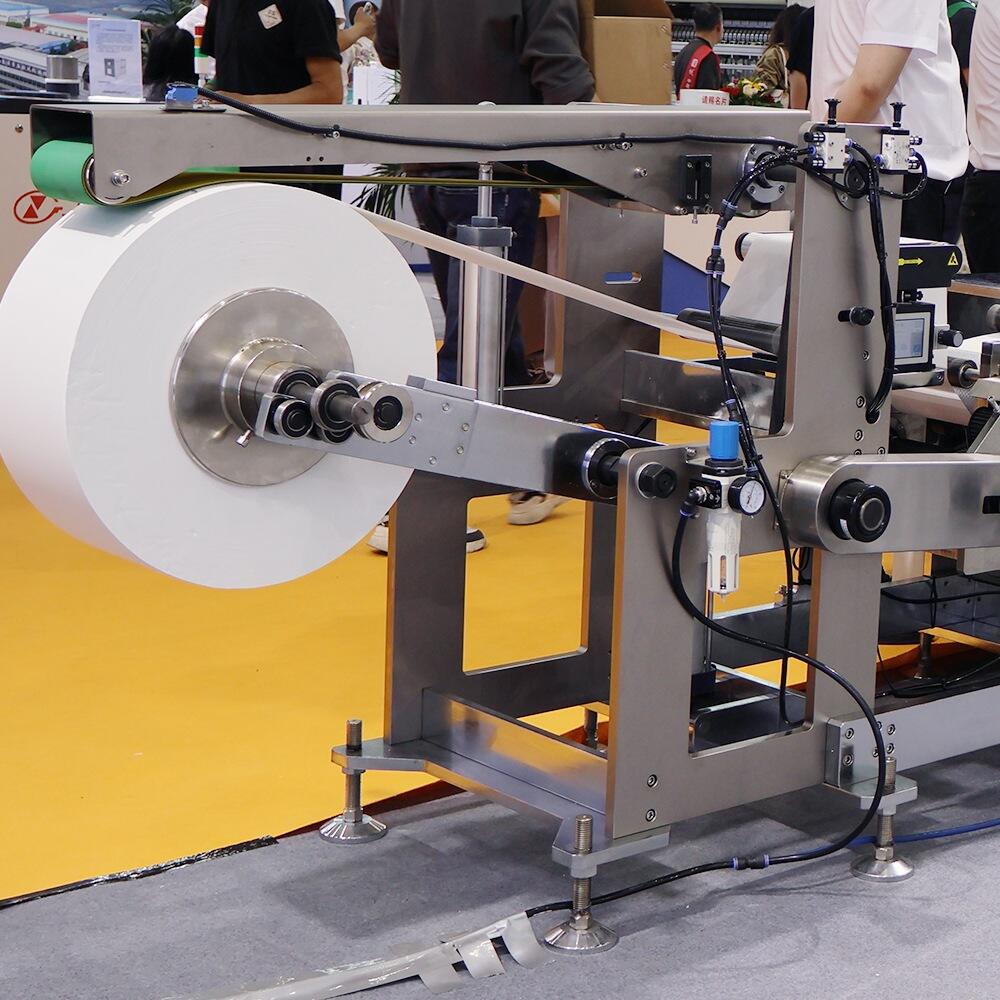

1.Automatic Paper Feeding – the paper rolls are automatically conveyed after loading, with visualized efficiency and easy replacement of paper rolls.

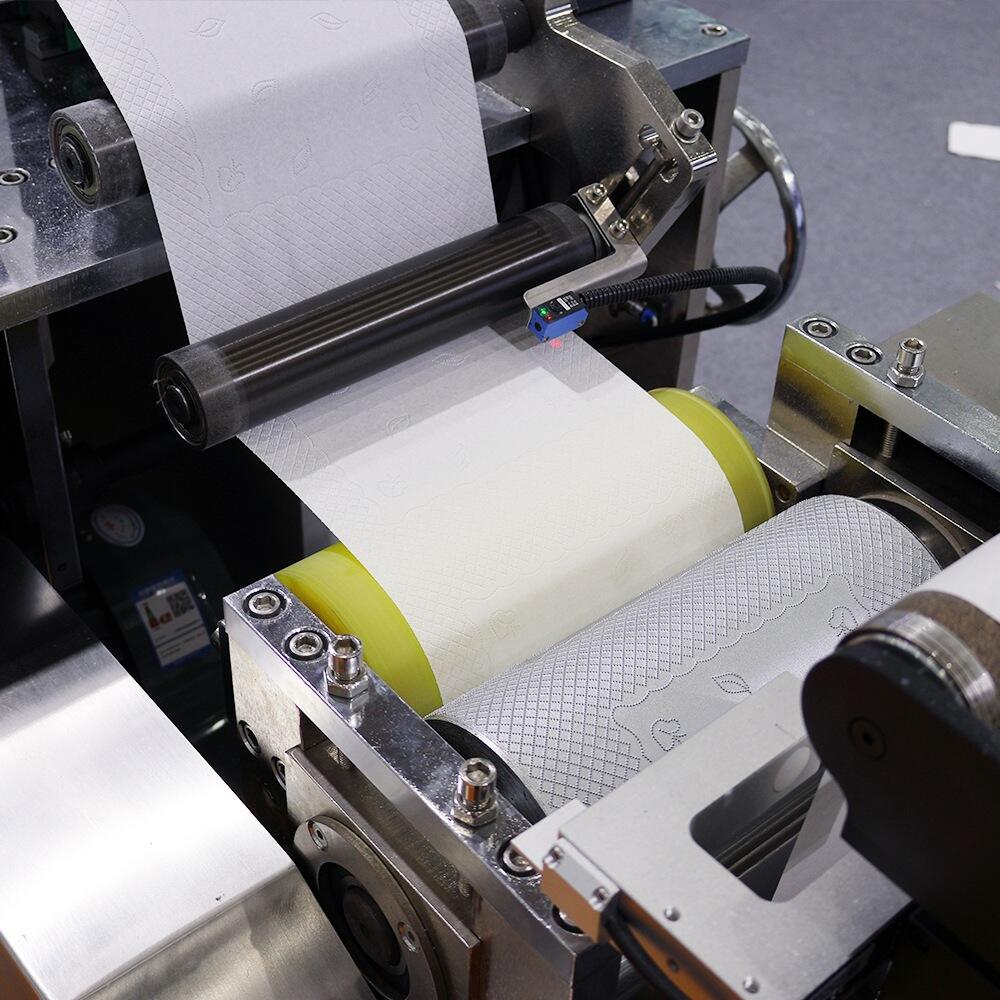

2.Tissue Embossing - The embossing roller embosses the pattern on the tissue

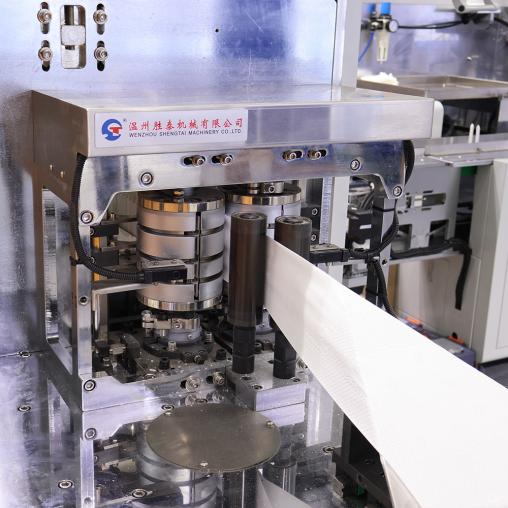

3.Folding and Slicing - Automatically fold the paper and feed them into the slicing device
